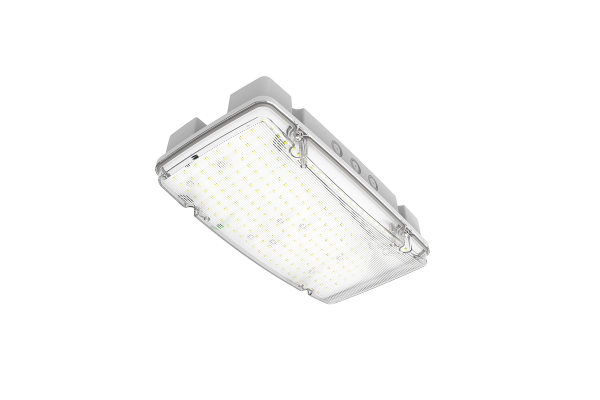

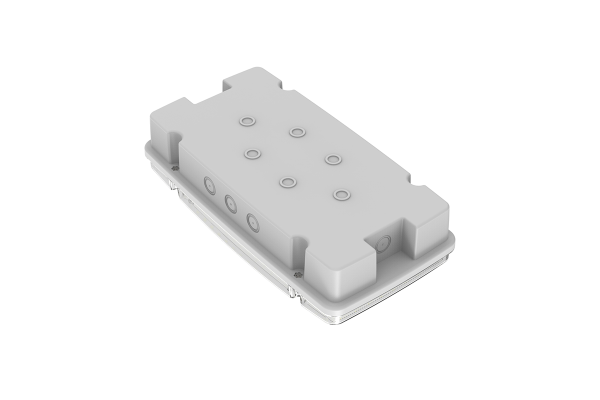

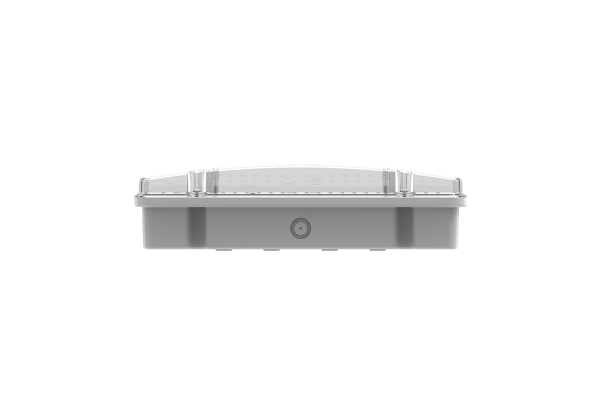

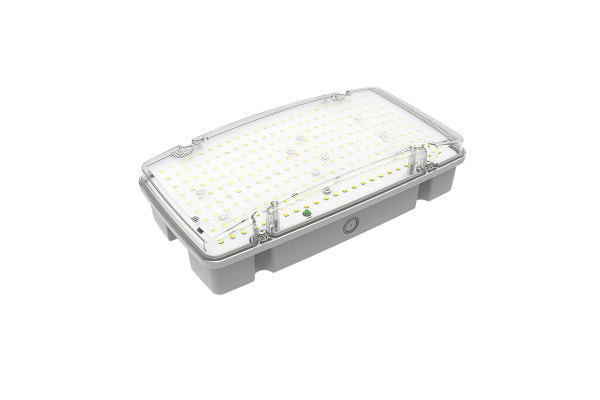

High Output Emergency Bulkhead: 1000/1500lm
IP66: Ideal for high installations such as plant rooms or lift shafts
Integrated gear tray into diffuser for easy install
Non-maintained
Manual test / Self-test selectable
Emergency power: 6W/10W & 1000/1500lm
5 years warranty: full fitting and battery
CQR Emergency Bulkheads are available in 1000lm & 1500lm variants with options available for standard and recessed mounting. The Bulkhead Max has maintained & non-maintained optionality as standard with selectable Manual test / Self-test.
| Voltage / Frequency | AC 220-240V 50/60Hz |
|---|---|
| Running Current (A) | 0.05 |
| Charging Power (W) | 4.5 |
| Emergency Power (W) | 10 |
| Power Factor | 0.3 |
| Inrush Current (A / us) | 13A / 100us |
| Electrical Class | 2 |
| Battery | LiFePO4 6.4V 6600mAh |
| Emergency Duration (Hrs) | 3 |
| Beam Angle | 135° |
| Emergency Mode Lumens | 1000 / 1500 |
| CCT (K) | 6500 |
| CRI | 80 |
| Lifetime (Hrs) | 50000 |
| Lumen Maintenance L70 (Hrs) | 50000 |
| Maintained / Non-Maintained | Non-Maintained |
| Self-Test | Yes |
| Dimensions (LxWxH mm) | 321x167x83 |
| Housing Material | Polycarbonate |
| IP Rating | 65 |
| RAL Colour | RAL 9003 |
| Product Warranty | 5 |
| Commodity Code | 85311030 |
| Country Of Origin | CN |
| Mounting method | Surface |
