SOSB1 | Sounder | Grade 1 | 109db | White

SKU SOSB1L Category

Piezo sounderSupply
ABS plastic
109dB Sound output

Description

Entry level grade 1 sounder, with 109 dB sound output, ideal for cost sensitive projects where an internal sounder is required with minimal size and cost.

Additional information

Colour

White

Material

Plastic ABS

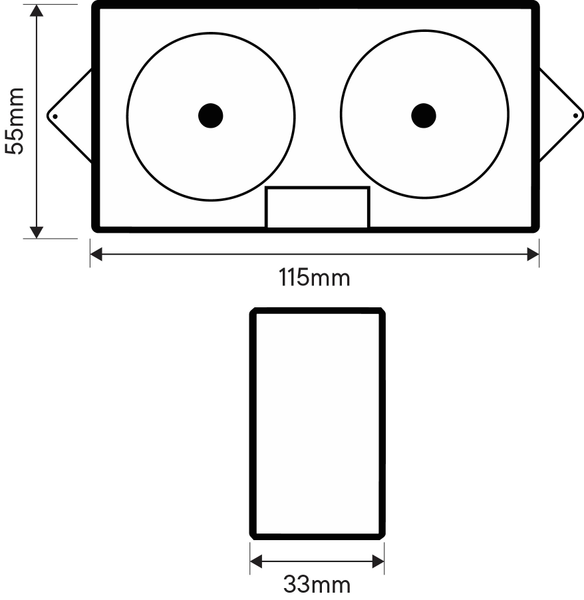

Dimensions (mm)

115 x 55 x 33

Temperature Range

-10° C to +40° C

Sounder Type

Piezo

Commodity Code

85311030

Country Of Origin

China

Height (mm)

38

Width (mm)

62

Depth (mm)

112

Barcode

5060399128551

Weight (kg)

0.095

EN50131-4 Grade

1

Tamper Protection

None

EN50130-5 class

II

IP Rating

3X

Sound Output (dB(A))

109

Voltage range (Vdc)

6-15

Nominal voltage (Vdc)

6-15

Sound Only Current (mA)

85

Datasheet
Declaration of Performance EU
