Description
Entry level grade 1 sounder, with 110 dB sound output, ideal for cost sensitive projects where an internal sounder is required with minimal size and cost.
Piezo sounder
ABS plastic
Grade 1 Economy Sounder
110dB Sound output
Economy sounder for simple applictions
Entry level grade 1 sounder, with 110 dB sound output, ideal for cost sensitive projects where an internal sounder is required with minimal size and cost.
| Colour | White |
|---|---|
| Material | ABS Plastic |

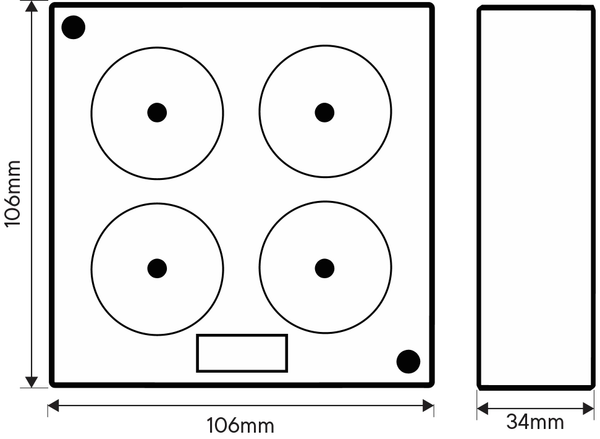

| Dimensions (mm) | 106 x 106 x 34 |
| Environmental Class | II |
| Temperature Range | -10° C to +40° C |
| Sounder Type | Piezo |
| Country Of Origin | CN |
| Barcode | 5.0604E+12 |
| Tamper Protection | None |
| IP Rating | 3X |
| Sound Output (dB(A)) | 110 |
| Voltage range (Vdc) | Jun-15 |
| Nominal voltage (Vdc) | 12 |
| Sound Only Current (mA) | 190 |
| Security Grade | 1 |
| Warranty | 2 Years |
| Packaging Height (mm) | 45 |
| Packaging Width (mm) | 110 |
| Packaging Depth (mm) | 110 |
| Packaging Weight (kg) | 0.1997 |
| Standards | EN50131-1, EN50131-4, EN50130-5 |
