4 Core pre-wired
15mm operating gap
EN50131-2-6 Grade 2
Environmental Class II

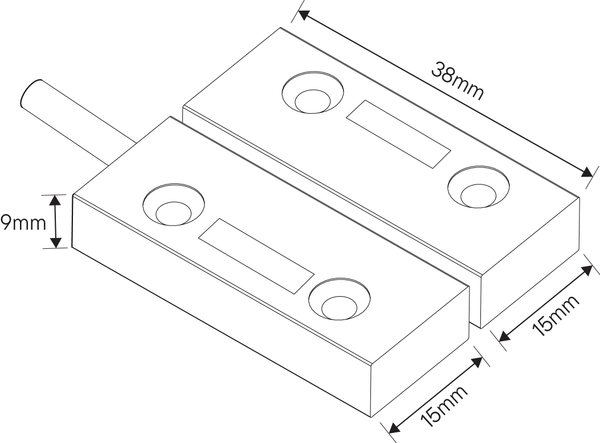

Size 38 x 15 x 9mmn
Available with a 60cm, 3m or 12m cable
This surface mounted magnet contact can be used in security systems up to and including grade 2 and environmental class II as specified in EN50131-1 and is compliant with EN50131-2-6. It operates as a normally closed circuit going open when the magnet is removed. This contact is not suitable for ferrous surfaces
| Colour | White |
|---|---|
| Environmental Class | Class II |
| Material | HIPS |
| Contact Material | Palladium |
| Standards | EN50131-1, EN50131-2-6, EN50130-5 |
| Country Of Origin | GB |
| Height (mm) | 20 |
| Width (mm) | 68 |
| Depth (mm) | 78 |
| Barcode | 5.0604E+12 |
| Weight (kg) | 0.3993 |
| Type of | Pre-wired |
| Tamper Protection | Internal |
| IP Rating | 3X |
| Temperature Range | -10°C – +40°C |
| Contact Dimensions (mm) | 38 x 15 x 9 |
| Magnet Dimensions (mm) | 38 x 15 x 9 |
| Connection Type | Wired |
| No. of Terminals | 4 Wire |
| Contact Type | Normally Closed |
| Wire length (mm) | 600 |
| Mode Of Operation | DP |
| Operation Axes (X, Y, Z) | X, Y, Z |
| Pull-in gap (X, Y, Z)mm | 10, 15, 25 |
| Pull in Gap | 15mm |
| Suitable for Double Door | Yes |
| No of Reed Switches | 1 |
| Resistor Value | Non-resistored |
| Max switching current (mA) | 500 |
| Suitable Double Pole Sys | Yes |
| Security Grade | 2 |
| Switch Rating (Vdc) | 12 |
| Waranty | 2 |
