Description
Weatherproof Junction Box with microswitch tamper and optional base tamper. Can be used with various heavy duty contacts.
Weatherproof Junction Box Can accommodate different truncking sizes ABS Screw terminals Microswitch tamper Optional base tamper Grade 3 Environmental Class II Conforms to PD6662:2017
Weatherproof Junction Box with microswitch tamper and optional base tamper. Can be used with various heavy duty contacts.
| Brand | CQR |
|---|---|
| No. Connector Terminals | 12 |
| No. Tamper Terminals | 2 |
| Connection Type | Terminals |
| Lid Tamper | Microswitch |
| Wall Tamper | Optional |
| Weatherproof | Yes |
| WireGuard | Stainless Steel |
| Wire Range | 22-14AWG, 1.5mm2 |
| Rated Voltage (V) | 30 |
| Rated Current (A) | 5 |
| Material | ABS |
| Colour | White |

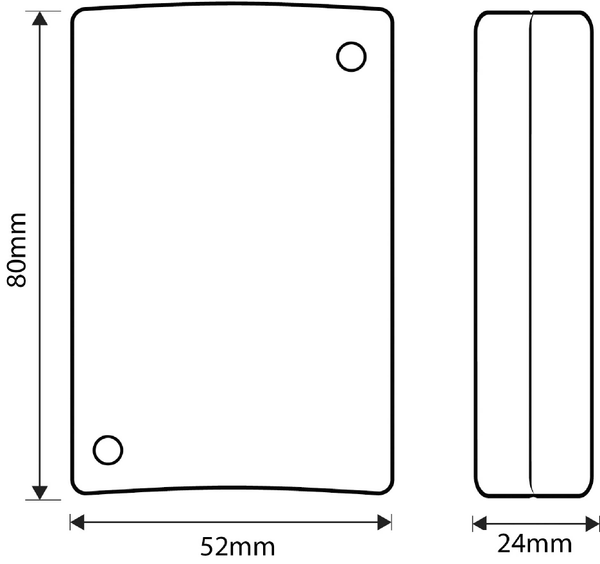

| Dimension Height (mm) | 80 |
| Dimension Width (mm) | 24 |
| Dimension Depth (mm) | 52 |
| Dimensions (HxWxD mm) | 80x24x52 |
| Environmental Class | III |
| Standards | EN50131-1, EN50130-5 |
| PD6662:2017 | Yes |
| Commodity Code | CN |
| Country Of Origin | 85369010 |
| Height (mm) | 100 |
| Width (mm) | 25 |
| Depth (mm) | 50 |
| Security Grade | 3 |
