25mm diameter
2 x SPDT contact type
Operating gap 30mm
Pre Wired
EN50131 Grade 1Technical
This Flush mounted magnet contact can be used in security systems up to and including grade 1 and environmental class II as specified in EN50131-1 and is compliant with EN50131-2-6. It includes 2 x SPDT (change-over) reed switches which change state when the included magnet is applied or removed.
| Colour | White |
|---|---|
| Environmental Class | Class II |
| Material | HIPS |
| Contact Material | Palladium |
| Standards | EN50131-1, EN50131-2-6, EN50130-5 |
| Country Of Origin | CN |
| Height (mm) | 30 |
| Width (mm) | 40 |
| Depth (mm) | 55 |
| Barcode | 5.0604E+12 |
| Weight (kg) | 0.04147 |
| Flame Retardant | No |
| Type of | Flush |
| IP Rating | 3X |
| Temperature Range | -10°C – +40°C |

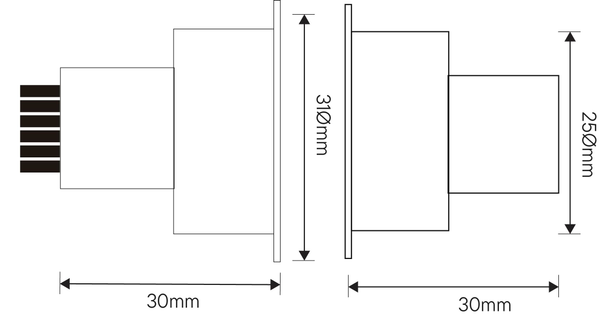

| Contact Dimensions (mm) | 25Ø x 30 |
| Magnet Dimensions (mm) | 25Ø x 30 |
| Connection Type | Wired |
| No. of Terminals | 6 Wire |
| Contact Type | 2 x Change-Over COM/NO/NC |
| Wire length (mm) | 350 |
| Mode Of Operation | SP |
| Operation Axes (X, Y, Z) | Y, Z, |
| Pull-in gap (X, Y, Z)mm | 25, 25 |
| Pull in Gap | 25mm |
| Suitable for Double Door | No |
| No of Reed Switches | 2 |
| Resistor Value | Non-resistored |
| Max switching voltage (Vdc) | 12 |
| Max switching current (mA) | 500 |
| Suitable Double Pole Sys | No |
| Security Grade | 1 |
| Waranty | 2 |
