FC503 | Flush Contact | Grade 1 | Brown | Non-resistored

SKU FC505/BR Category

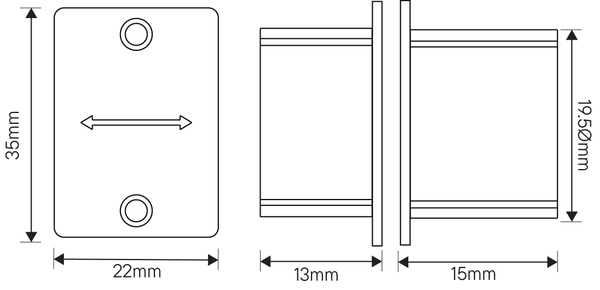

Quick Fit Flush Magnetic Contact Body 19(dia) x 15 – Face plate 35 x 22mm 5 Terminal Operating Gap – 20mm EN50131-2-6 Grade 1 Environmental Class II

Description

This Flush mounted magnet contact can be used in security systems up to and including grade 1 and environmental class II as specified in EN50131-1 and is compliant with EN50131-2-6. It operates as a normally closed circuit going open when the magnet is removed. This contact is not suitable for ferrous surfaces

Additional information

Colour

Brown

Material

HIPS

Contact Material

Palladium

Commodity Code

85311030

Country Of Origin

UK

Height (mm)

25

Width (mm)

50

Depth (mm)

40

Barcode

5060399126267

Weight (kg)

0.024

Flame Retardant

No

Type of

Flush

EN50131-2-6 Grade

1

EN50130-5 class

Class II

IP Rating

3X

Temperature Range

-10°C – +40°C

Contact Dimensions (mm)

19 x 13 (Faceplate 35 x 25 x 1.6)

Magnet Dimensions (mm)

19 x 13 (Faceplate 35 x 25 x 1.6)

Connection Type

Screw

No. of Terminals

5 Screw

Contact Type

Normally Closed

Mode Of Operation

SP

Operation Axes (X, Y, Z)

X, Y, Z

Pull-in gap (X, Y, Z)mm

18, 20, 20

Pull in Gap

20mm

Suitable for Double Door

Yes

No of Reed Switches

1

Resistor Value

Non-resistored

Datasheet
Instruction Sheet
