SC517 | Surface Contact | Grade 3 | Brown | Multi Resistored

SKU SC517/BR/MULTI/G3/EN Category

4 Terminals
Microswitch tamper
Selectable end of line resistor
Can use own resistors
Available in white or brown
Can be fitted in double pole systems
Can be used on double door configuration
Magnetic Interference Detection
Contact spacers available

Description

This compact surface mounted magnetic contact can be used in most security systems up to and including grade 3 as specified in EN50131-1: 2006 and is certified to EN50131-2-6:2008 and environmental class II (for use indoors) by Kiwa FSS. It operates as a normally closed circuit going open when the magnet housing is moved away from the contact housing. This contact can be used on windows and doors to detect the unauthorised entry of an intruder.
The contact is tamper protected against removal from its mounting surface. Additionally there is a magnetic interference detection circuit for signalling the proximity of a magnet, which typically would be used by an intruder trying to inhibit the performance of the contact.

Additional information

Colour

Brown

Material

HIPS

Contact Material

Rhodium

Resistor Value

Multi Resistored

Commodity Code

85311030

Country Of Origin

UK

Height (mm)

16

Width (mm)

27

Depth (mm)

75

Barcode

5060399127929

Weight (kg)

0.2713

Resistor Type

A, B, D, E & I

Type of

Slimline

EN50131-2-6 Grade

3

Tamper Protection

RFMS & MID

EN50130-5 class

Class II

IP Rating

4X

Temperature Range

-15°C – +40°C

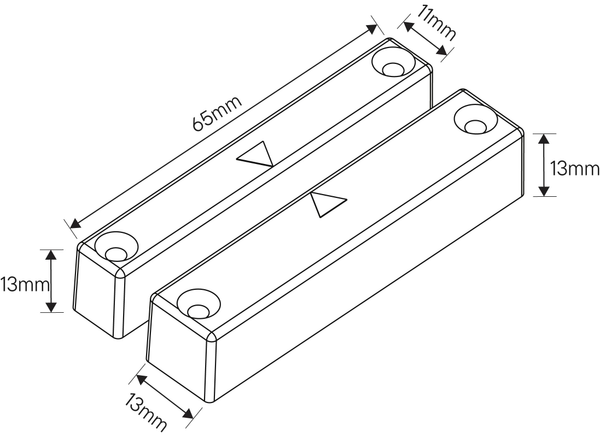

Contact Dimensions (mm)

65 x 13 x 13

Magnet Dimensions (mm)

65 x 13 x 13

Maximum switching voltage (Vdc)

12Vdc

Maximum switching current (mA)

500

Connection Type

Wired

No. of Terminals

4 Terminals

Contact Type

Normally Closed

Mode Of Operation

DP, EOL/FSL

Operation Axes (X, Y, Z)

X, Y

Pull-in gap (X, Y, Z)mm

19, 10

Pull in Gap

10mm

Suitable for Double Door

Yes

Suitable for Double Pole Sys

Yes

No of Reed Switches

1
