RS007 Type AB 1mtr Cable | Roller Shutter Contact | Grade 3 | Aluminium | Multi Resistored

SKU RS007/G3/AB/1M Category

High Quality Alloy Finish
Selectable (A,B)
Other resistor value available
Locating mechanism to aid alignment
45cm or 1 mtr Armoured cable lengths
EN50131-2-6 Grade 3
Environmental Class III

Description

This roller shutter contact can be used in most security systems up to and including grade 1 & 2 as specified in EN50131-1:2006 and is compliant with EN50131-2-6:2008 and environmental class III.

It operates as a normally closed circuit going open when the magnet housing is moved away from the contact housing.

This contact can be used on roller shutter doors to detect the unauthorised entry of an intruder. The contact is sealed to prevent access to the inside.

Additional information

Colour

Aluminium

Material

Aluminium

Contact Material

Rhodium & Ruthenium

Resistor Value

Multi Resistored

Commodity Code

85311030

Country Of Origin

UK

Height (mm)

50

Width (mm)

100

Depth (mm)

200

Barcode

5060399127790

Weight (kg)

0.471

Resistor Type

A & B

Type of

Roller Shutter

EN50131-2-6 Grade

3

Tamper Protection

Internal & MID

EN50130-5 class

Class III

IP Rating

42

Temperature Range

-15°C – +40°C

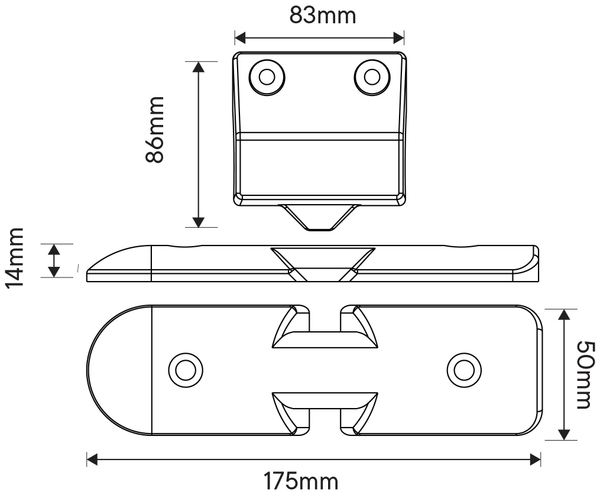

Contact Dimensions (mm)

83 x 86 x 32

Magnet Dimensions (mm)

83 x 86 x 32

Maximum switching voltage (Vdc)

12Vdc

Maximum switching current (mA)

250

Connection Type

Wired

No. of Terminals

8 Wire

Contact Type

Normally Closed

Wire length (mm)

1000

Mode Of Operation

DP, EOL/FSL

Operation Axes (X, Y, Z)

Y, Z,

Pull-in gap (X, Y, Z)mm

23, 28

Pull in Gap

23mm

Suitable for Double Door

Yes

Suitable for Double Pole Sys

Yes

No of Reed Switches

1
