Description
The Piccolo is a low profile and compact grade 3 internal strobe sounder, with selectable alternating or continuous tone, flashing alarm and low current consumption.
Available with System 5 approval for specified markets.
Menu
Grade 3 Environment Class II
Low profile design?112dB(A) Sound output
Selectable alternating or continuous tone
Flashing alarm indication
Low current consumption
Tamper protected lid and mounting
Can be installed in security systems up to and including Grade 3
The Piccolo is a low profile and compact grade 3 internal strobe sounder, with selectable alternating or continuous tone, flashing alarm and low current consumption.
Available with System 5 approval for specified markets.
| Colour | White |
|---|---|
| Material | ABS Polcarbonate |

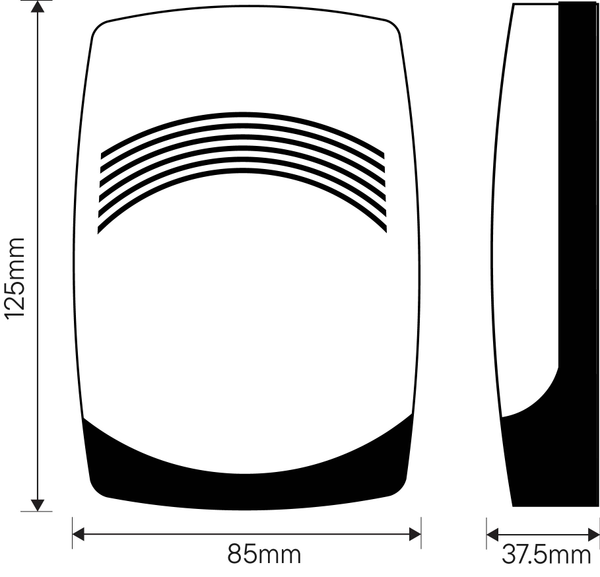

| Dimensions (mm) | 125 x 85 x37.5 |
| Temperature Range | -10° C to +40° C |
| Lens Colour | Blue |
| Sounder Type | Quasi Dynamic |
| Commodity Code | 85311030 |
| Country Of Origin | China |
| Height (mm) | 35 |
| Width (mm) | 90 |
| Depth (mm) | 125 |
| Barcode | 5.0604E+12 |
| Weight (kg) | 0.17 |
| EN50131-4 Grade | 3 |
| System 5 (ISO17067) | YES |
| Tamper Protection | Lid & Mounting Surface |
| EN50130-5 class | II |
| IP Rating | 4X |
| Lens Material | Polycarbonate |
| Sound Output (dB(A)) | 112 |
| Voltage range (Vdc) | Sep-15 |
| Nominal voltage (Vdc) | Sep-15 |
| Flash Only Current (mA) | 17 |
| Sound Only Current (mA) | 84 |
| Sound & Flash Current (mA) | 110 |
