Description
The Piccolo is a low profile and compact grade 3 internal strobe sounder, with selectable alternating or continuous tone, flashing alarm and low current consumption.
Grade 3 Environment Class II
Low profile design
112dB(A) Sound output
Selectable alternating or continuous tone
Flashing alarm indication
Low current consumption
Tamper protected lid and RFMS
The Piccolo is a low profile and compact grade 3 internal strobe sounder, with selectable alternating or continuous tone, flashing alarm and low current consumption.
| Colour | White |
|---|---|
| Material | Polcarbonate |

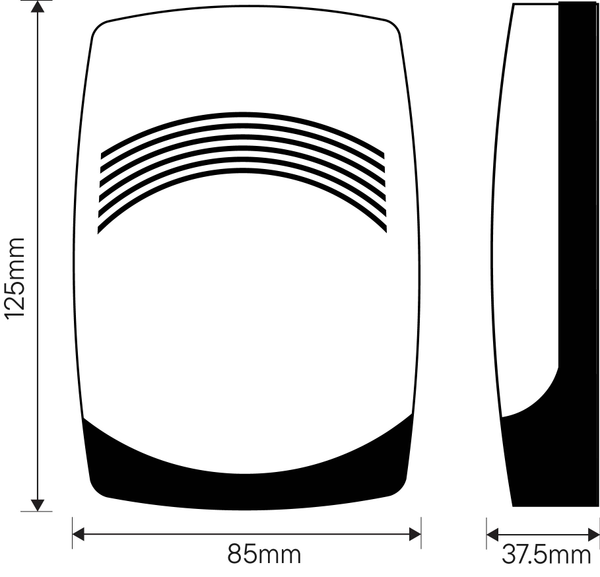

| Dimensions (mm) | 125 x 85 x37.5 |
| Environmental Class | II |
| Temperature Range | -10° C to +40° C |
| Lens Colour | Blue |
| Sounder Type | Quasi Dynamic |
| System 5 (ISO17067) | YES |
| Tamper Protection | Lid & RFMS |
| IP Rating | 4X |
| Lens Material | Polycarbonate |
| Sound Output (dB(A)) | 112 |
| Voltage range (Vdc) | Sep-15 |
| Nominal voltage (Vdc) | 12 |
| Flash Only Current (mA) | 17 |
| Sound Only Current (mA) | 84 |
| Sound & Flash Current (mA) | 110 |
| Security Grade | 3 |
| Standards | EN50131-1, EN50131-4, EN50130-5 |
| Warranty | 2 Years |
| Packaging Height (mm) | 35 |
| Packaging Width (mm) | 90 |
| Packaging Depth (mm) | 125 |
| Packaging Weight (kg) | 0.17 |
