Available in White, Stainless Steel or Brass
Latching
Selectable for Normally Open / Normally Closed
Indicator to show activation
5 Terminal
Key Resettable
Spare keys available
CQR manufacture the PASP range of Single Push Panic Buttons, providing a simple and discreet method of raising the notification of a potential threat. Available in White and Stainless Steel finishes.
This range of hold up devices can be installed in security systems up to and including Grade 1.
The devices feature an activation indicator, and a key is used to reset the device.
| Colour | White |
|---|---|
| Buttons | Single Push |
| Reset Method | Key |
| Switch rating | 12v DC 500mA |
| PA Output | Selectable NO or NC |
| Commodity Code | 85311030 |
| Country Of Origin | UK |
| Height (mm) | 70 |
| Width (mm) | 25 |
| Depth (mm) | 50 |
| Barcode | 5060399127189 |
| Weight (kg) | 0.06 |
| EN50131-1 Grade | 1 |
| Tamper Protection | None |
| EN50130-5 class | II |
| IP Rating | 3X |
| Temperature Range | -10° C to +40° C |
| Material | Polystyrene |

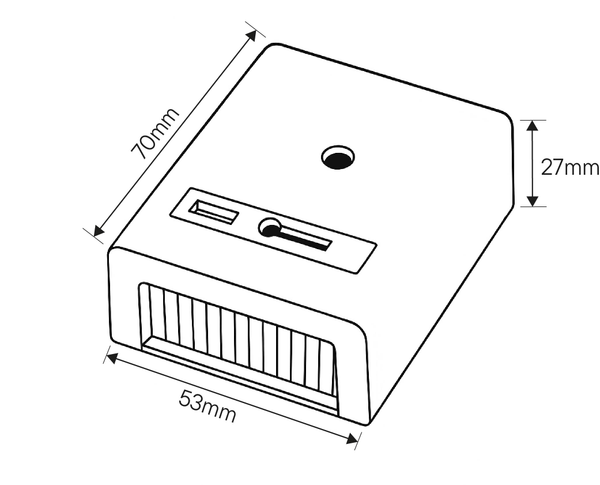

| Dimensions (mm) | 70 x 53 x 27 |
| Visual Indication | Yes |
| Reset Option | Latching |
| Confirmed Output | No |
| Operation Mode | Push |
| Timed | No |
| Mounting method | Surface |
| Connection Type | Screw |
| No. Terminals | 5 |
