Panic Button | Electronic | Plus | Grade 3 | White | Keyless

SKU EPA-NG/PLUS/WH/G3 Category

Second Relay Output (for confirmed operation)
One or Two Button Operation
Timed Delay Operation
LED Indicator
Latching or Non Latching
Selectable EOL Settings
Keyless Reset
PD6662:2017 BS8243:2010

Description

The EPA – NG is the most advanced Hold-Up device available on the market today. Packed with innovative features, this electronic unit is a versatile device capable of many functions.

Additional information

Colour

White

Buttons

Dual Push

Reset Method

Keyless

PA Output

Changeover COM/NO/NC

Commodity Code

85311030

Country Of Origin

China

Height (mm)

70

Width (mm)

95

Depth (mm)

95

Barcode

5060399126120

Weight (kg)

0.181

EN50131-1 Grade

3

Tamper Protection

Cover

EN50130-5 class

II

IP Rating

4X

Temperature Range

-10° C to +40° C

Material

ABS

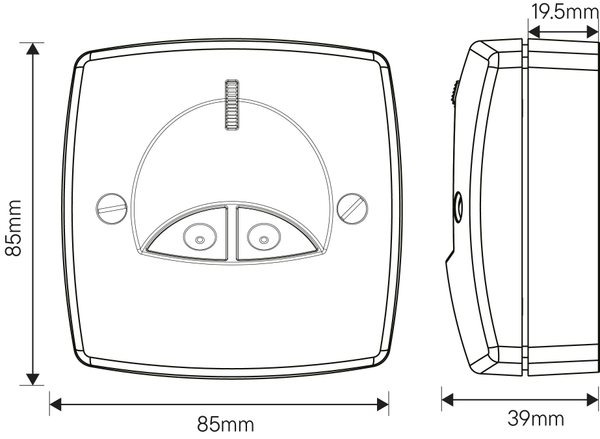

Dimensions (mm)

85 x 85 x 39

Voltage range (Vdc)

Nov-15

Nominal voltage (Vdc)

12

Quiescent Current (mA)

30

Switch rating

12v 1A

Visual Indication

Yes

Reset Option

Selectable

Confirmed Output

Yes

Operation Mode

Push

Timed

Yes

Mounting method

Surface / Flush

Features Selected by

Jumper

Built-in Resistor Types

A, B, D, E

Connection Type

Terminals

No. Terminals

10

Other Standards

PD6662 / BS4737 3.14 Type Z / BS8243:2010

Datasheet
Declaration of Conformity
