The original electronic Hold-up device is still available. This is a flush – fitting Hold-up device which means that the device can be mounted in a standard UK gang box, thanks to its flat face and resessed buttons.
Menu
8 Terminals
Electronic 12V (45mA) Dual Push
Key Resettable
LED Indicator
Self Latching
Rear Tamper
The original electronic Hold-up device is still available. This is a flush – fitting Hold-up device which means that the device can be mounted in a standard UK gang box, thanks to its flat face and resessed buttons.
| Colour | Stainless Steel |
|---|---|
| Buttons | Dual Push |
| Reset Method | Key |
| Switch rating | 12v 1A |
| PA Output | Changeover COM/NO/NC |
| Commodity Code | 85311030 |
| Country Of Origin | UK |
| Height (mm) | 62 |
| Width (mm) | 95 |
| Depth (mm) | 95 |
| Barcode | 5060399126090 |
| Weight (kg) | 0.1467 |
| EN50131-1 Grade | 3 |
| Tamper Protection | RFMS Spring |
| EN50130-5 class | II |
| IP Rating | 4X |
| Temperature Range | -10° C to +40° C |
| Material | ABS |

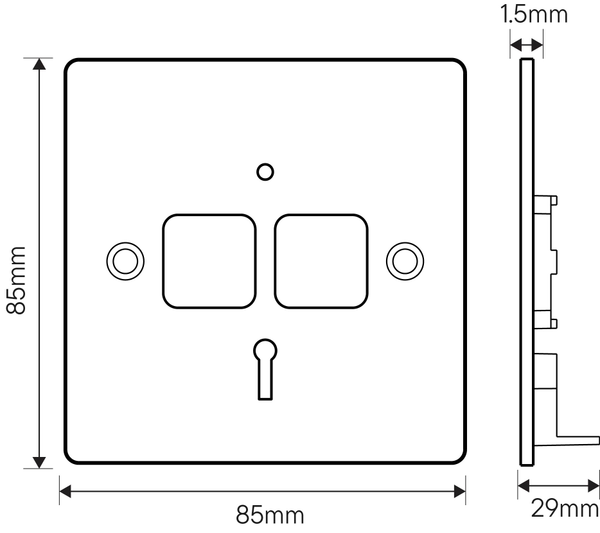

| Dimensions (mm) | 85 x 85 x 16 |
| Voltage range (Vdc) | 12 |
| Nominal voltage (Vdc) | 12 |
| Quiescent Current (mA) | 45 |
| Visual Indication | Yes |
| Reset Option | Latching |
| Confirmed Output | No |
| Operation Mode | Push |
| Timed | No |
| Mounting method | Surface / Flush |
| Connection Type | Terminals |
| No. Terminals | 8 |
| Other Standards | PD6662 & BS4737 3.14 Type Z |
