Micro-switch alarm and tamper
Can be used as a DP or Eol
Selectable end of line resistors built in: A, B, D, E & I
Selectable for normally open / normally closed
Indicator to show activation
4 terminals
Key resettable
Latching / Non-Latching
CQR manufacture two ranges of Double Push Panic Buttons, providing a discreet method of raising the notification of a potential threat, with the reduced possibility of false activation due to having two buttons for activation.
| Security Grade | 3 |
|---|---|
| Environmental Class | II |
| Operation Mode | Push |
| Reset Option | Selectable |
| Buttons | Dual Push |
| Reset Method | Key |
| Mounting method | Surface |
| Connection Type | Terminals |
| Built-in Resistor Types | A, B, D, E, I |
| Confirmed Output | No |
| Switch rating | 12v DC 3A |
| Features Selected by | Jumper |

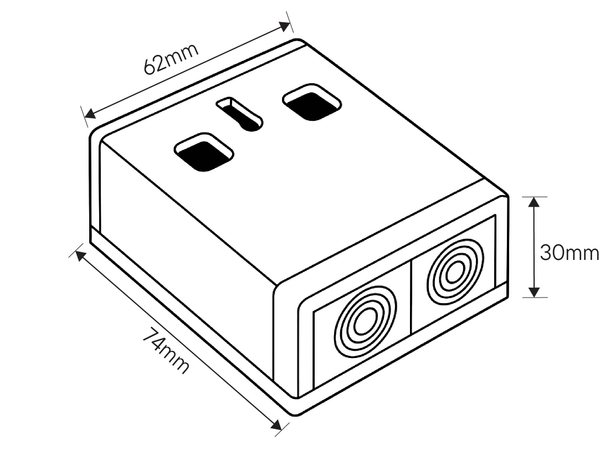

| Dimensions (mm) | 74 x 62 x 30 |
| Colour | White |
| Material | ABS |
| IP Rating | 4X |
| Temperature Range | -10° C to +40° C |
| Tamper Protection | Cover & RFMS |
| Standards | EN50131-1, EN50130-5 |
| Warranty | 2 |
