Description

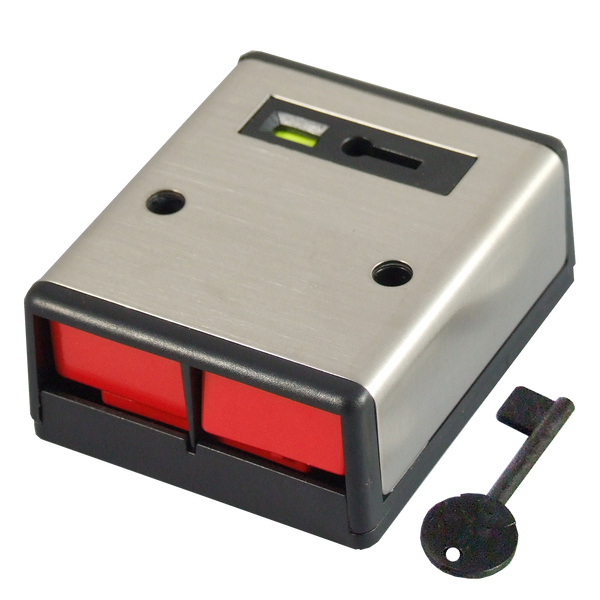

CQR manufacture two ranges of Double Push Panic Buttons, providing a discreet method of raising the notification of a potential threat, with the reduced possibility of false activation due to having two buttons for activation.
EN50131-1 : Grade 1
Selectable for normally open / normally closed
Indicator to show activation
5 terminals
Key resettable
Latching
Spare keys available
CQR manufacture two ranges of Double Push Panic Buttons, providing a discreet method of raising the notification of a potential threat, with the reduced possibility of false activation due to having two buttons for activation.
| Colour | White |
|---|---|
| Buttons | Dual Push |
| Reset Method | Key |
| Switch rating | 12v DC 500mA |
| Standards | EN50131-1, EN50130-5 |
| Environmental Class | II |
| PA Output | Selectable NO or NC |
| Country Of Origin | GB |
| Height (mm) | 70 |
| Width (mm) | 60 |
| Depth (mm) | 30 |
| Barcode | 5.0604E+12 |
| Weight (kg) | 0.085 |
| Tamper Protection | None |
| IP Rating | 3X |
| Temperature Range | -10° C to +40° C |
| Material | HIPS |
| Dimensions (mm) | 74 x 62 x 30 |
| Visual Indication | Yes |
| Reset Option | Latching |
| Confirmed Output | No |
| Operation Mode | Push |
| Timed | No |
| Mounting method | Surface |
| Connection Type | Screw |
| No. Terminals | 5 |
| Security Grade | 1 |
| Warranty | 2 |
