Versatile design with two models.
Choice of eight covers available.
Up to 115dB(A) sound output.
Selectable trigger wire monitoring.
Selectable high and low sound output.
Selectable timers.
Negative or Positive trigger option
This self powered external warning device can be installed in security systems up to and including Grade 3 Environmental class IV in accordance with EN50131-1: 2006 + A3: 2020. It is certified by Kiwa to EN50131- 4: 2019, WD type Z.
The warning device features one or two piezos (depending on model) and a strobe for audible and visual indication of an alarm activation. It is supplemented by a choice of eight stylish covers that are easily attached using one fixing screw. Installer features include selectable timing options that are model dependant and selectable sound output of 85dB(A) and 115dB(A) measured at 3 metres and 1 meter respectively.
| Range | Multibox |
|---|---|
| Security Grade | 3 |
| Environmental Class | IV |
| Sounder Type | Piezo |
| Sound Output (dB(A)) | 115 |
| Nominal voltage (Vdc) | 12V |
| Flash Only Current (mA) | 190mA |
| Sound Only Current (mA) | 330mA |
| Visual Indicator Type | Xenon Strobe |
| Siren Timer (minutes) | 3 | 15 |
| Trigger Wire Monitoring | Yes |
| Battery | 7.2v 330mAh NiMh |
| Comfort LEDs | Tamper | Hold Off | Battery |
| Self Test Input | Yes |
| Adjustable Siren Volume | 115 | 85 |
| Features Selected by | Jumpers |

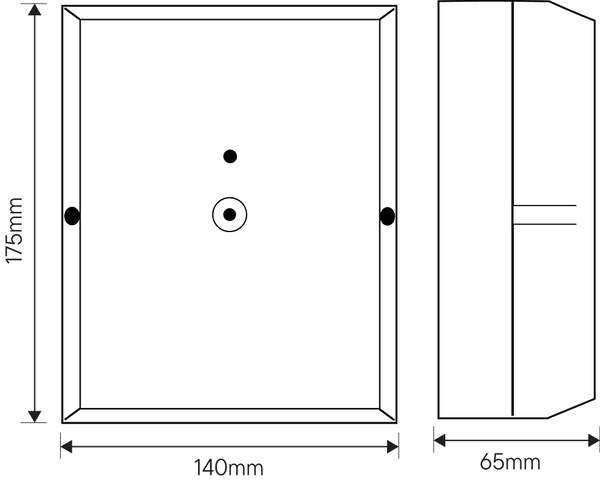

| Dimensions (mm) | 175 x 140 x 65 |
| Colour | Blue |
| Material | Polycarbonate |
| Lens Colour | Blue |
| Lens Material | Polycarbonate |
| IP Rating | 44 |
| Temperature Range | -10oC - +40oC |
| Tamper Protection | Wall & Cover |
| Standards | EN50131-1, EN50131-4, EN50130-5 |
| Warranty | 2 |
