Junction Box | 5 Way | Microswitch Tamper | Brown

SKU JB707/BR Category

ABS
Screw terminals
Microswitch tamper
Optional base tamper
Grade 3 Environmental Class II
Conforms to PD6662:2017

Description

Junction Box with microswitch tamper and optional base tamper.

Additional information

Brand

CQR

No. Connector Terminals

5

No. Tamper Terminals

2

Connection Type

Terminals

Lid Tamper

Microswitch

Wall Tamper

Optional

WireGuard

Stainless Steel

Wire Range

22-14AWG, 1.5mm2

Rated Voltage (V)

30

Rated Current (A)

5

Material

ABS

Colour

Brown

Dimension Height (mm)

85

Dimension Width (mm)

20

Dimension Depth (mm)

25

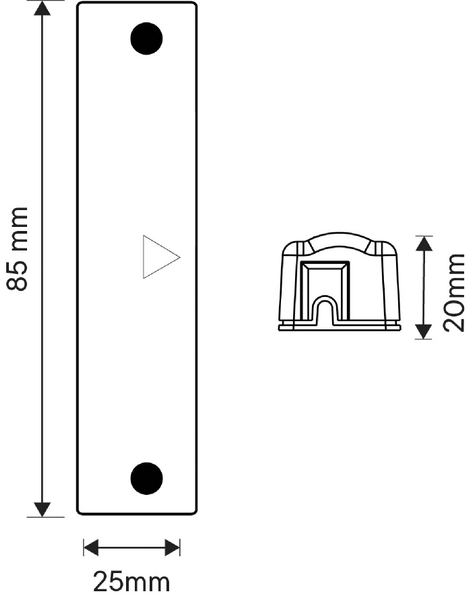

Dimensions (HxWxD mm)

85x20x25

Environmental Class

II

Standards

EN50131-1, EN50130-5

PD6662:2017

Yes

Country Of Origin

85369010

Height (mm)

85

Width (mm)

20

Depth (mm)

25

Security Grade

3

Datasheet
Declaration of Conformity
CQR Intruder Catalogue
Range Catalogue
