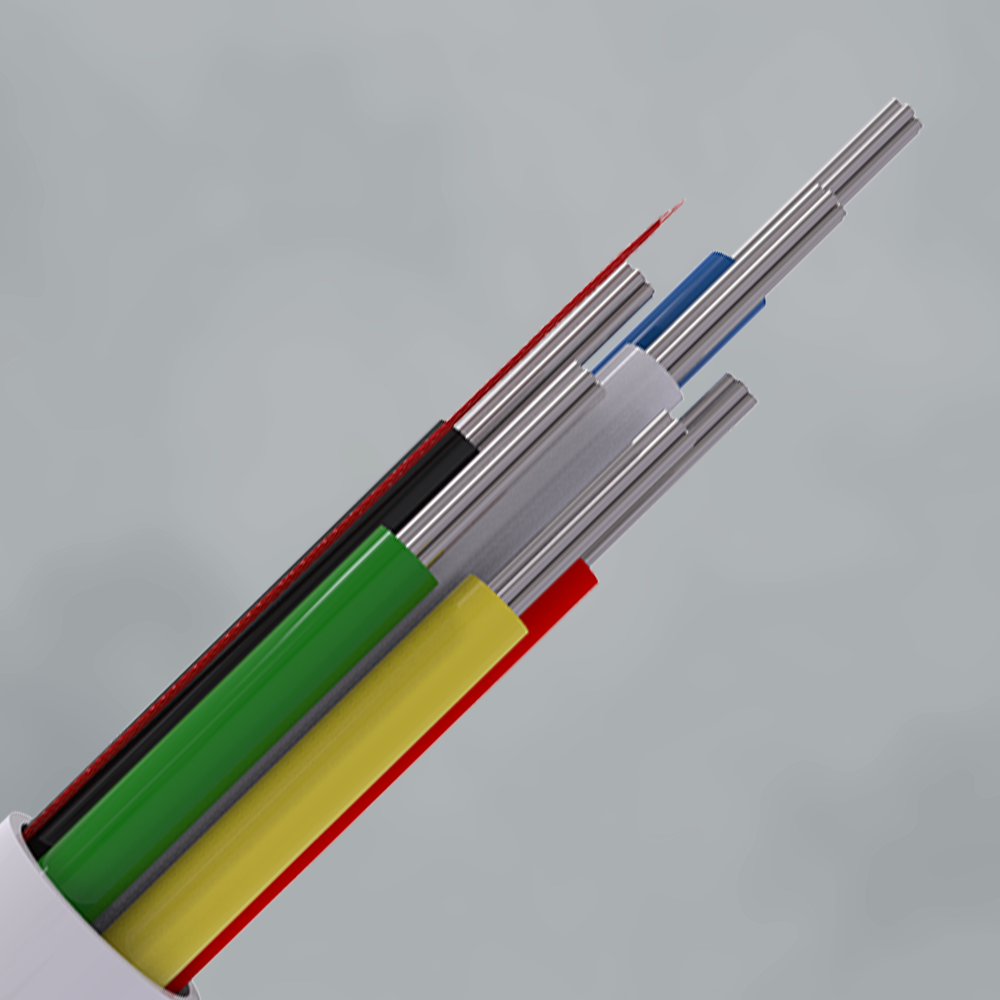

100% copper cores
Easy to strip & pliable in use
Coloured rip cord for BS4737 identification
EN50575 CPR certified
A cable designed by CQR to meet all aspects of the European Construction Product Regulation (CPR) EN50575.
This cable has been independently tested and certified by an accredited test facility and has been awarded a CPR Euro classification.
CQR offer the Installer, Specifier and End User a quality cabling solution and piece of mind that the product will perform to specification in the event of a fire.
| Number of Cores | 6 |
|---|---|
| Multi or Solid | Multi |
| BS4737 Type | TYPE 2 |
| EURO CLASS | Eca |
| Length (Mtrs) | 200 |
| Sheathing | PVC |
| Sheathing Colour | White |
| Screened | No |
| Conductor Type | Tinned Copper |
| Conductor Size | 0.182 |
| Number of Strands in Core | 7 |
| CSA (mm²) | 0.182 |
| AWG | 25 |
| Insulation Material | PVC |
| Insulation Colour | RD-BK-YL-BL-WH-GN |
| Insulation Resistance @20°C | ≈ 96 MΩ/Km |
| Nylon Rip Cord Colour | Red |
| Nominal Diameter | 3.9mm |
| Installation Tempature (°C) | +5°C to +40°C |
| Operating Temp | -10°C to +70°C |
| Max Voltage | 50V |
| Max Current | 1A |
| Reel / Box | Reel |
| Commodity Code | 85444993 |
| Country Of Origin | UK |
| Height (mm) | 100 |
| Width (mm) | 250 |
| Depth (mm) | 250 |
| Barcode | 5060399121811 |
| WEIGHT | 4.47 Kgs |
| Reel / Box Size | Card 9⅞" Plain Flange / Tin 3" x 4" |
| Resistance (Ω/km) | 94.6 |
