Intra |White with Blue Lens |Grade 2

SKU BCINTRA/W/B Category

Compact design with small footprint
Low Profile
Can be used as an internal sounder
15 minute sounder cut-off timer
Xenon strobe alarm indication
Red Hold-off LED
Tamper protected lid and mounting

Description

A fully functional sounder and strobe in miniature form that can be used internally or externally. It contains a 6V rechargeable battery for SAB operation and a 15 minute failsafe timer. This self powered external sounder can be installed in security systems up to and including Grade 2 as specified in EN50131-1:2006. It is compliant with EN50131-4:2009 and environmental class III. The warning device gives an audible and visual signal of alarm activation. Itis also protected against tampering by means of lid removal and removal from the mounting surface.

Additional information

Colour

White

Quiescent Current

30

Comfort LEDs

Red Hold Off LED

SAB/SCB

SAB

Engineer Hold Off

No

Trigger Wire Monitoring

No

Tamper Protection

Wall & Cover

Sounder Type

Piezo

No. of Sounders

1

Backlight

None

Visual Indicator Type

Xenon Strobe

Battery

6v 280mAh Ni-Mh

IP Rating

32

Lens Colour

Blue

Commodity Code

85311030

Country Of Origin

China

Height (mm)

60

Width (mm)

125

Depth (mm)

183

Barcode

5060399123686

Weight (kg)

0.4893

Range

Intra

EN50131-4 Grade

2

EN50130-5 class

III

Temperature Range

-10oC – +40oC

Material

Polycarbonate

Lens Material

Polycarbonate

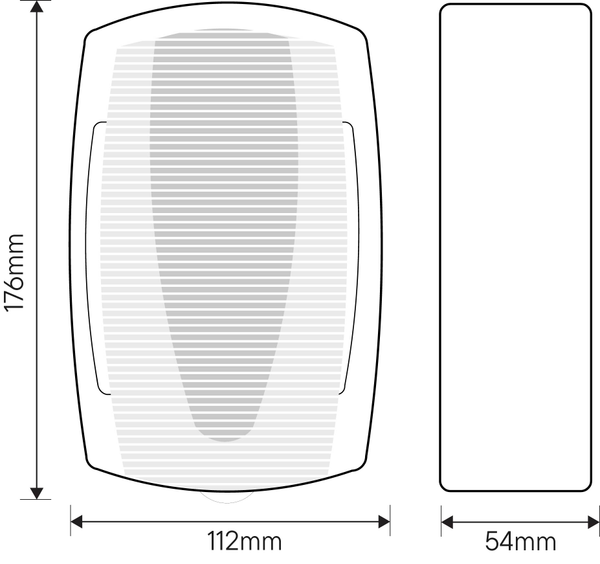

Dimensions (mm)

176 x 112 x 54

Sound Output (dB(A))

115

Voltage Range

10 – 15v

Nominal voltage (Vdc)

12V

Flash Only Current (mA)

120mA

Sound Only Current (mA)

200mA

Sound & Flash Current (mA)

320

Visual Indication

Xenon Flash

Siren Timer (minutes)

15

Datasheet
