FC508 Flame Retardent | Flush Contact | Grade 2 | White | Multi Resistored

SKU FC508/WH/MULTI/G2/FR Category

Flame retardant
Screw terminal block, no junction box required
Microswitch tamper
Selectable end of line resistor
Can use own resistors
Can be configured for double-pole systems
Suitable for double-door applications

Description

This flame retardant flush mounted magnetic door contact be used in most intruder alarm systems up to and including grade 2 as specified in EN50131-1:2006 and is certified to EN50131-2-6:2008 and environmental class II (for use indoors) by Kiwa FSS. It operates as a normally closed circuit going open when the magnet housing is moved away from the contact housing. This contact can be used on most doors to detect the unauthorised entry of an intruder. It has 4 terminals to allow for the selection of either double pole or EoL configuration and is suitable for use on double door applications, it is also protected against tampering by lid removal.

Additional information

Colour

White

Material

HIPS

Contact Material

Rhodium

Resistor Value

Multi Resistored

Commodity Code

85311030

Country Of Origin

China

Height (mm)

30

Width (mm)

40

Depth (mm)

55

Barcode

5060399129596

Weight (kg)

0.0248

Resistor Type

A, B, D, E & I

Flame Retardant

Yes

Type of

Flush

EN50131-2-6 Grade

2

Tamper Protection

Cover

EN50130-5 class

Class II

IP Rating

3X

Temperature Range

-15°C – +40°C

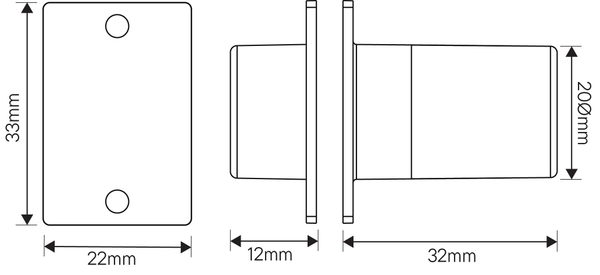

Contact Dimensions (mm)

33 x 22 x 32

Magnet Dimensions (mm)

33 x 22 x 32

Connection Type

Terminal

No. of Terminals

4 Screw

Contact Type

Normally Closed

Mode Of Operation

DP, EOL/FSL

Operation Axes (X, Y, Z)

Y, Z,

Pull-in gap (X, Y, Z)mm

15, 9

Pull in Gap

16mm

Suitable for Double Door

Yes

No of Reed Switches

1
