Advanced algorithms provide advanced detection discrimination
Easy installation. No programming required
Low maintenance
Durable sensor. No adjustment or replacement required
Sleek low-profile housing design
Stable photoelectric smoke sensing chamber. No adjustment or replacement required
Dual LEDs for 360° visibility
Conventional photoelectric heat detectors are state-of-the-art detectors suitable for connection to conventional fire detection control and indicating equipment, or to addressable fire detection control and indicating equipment that can accept conventional type detectors.
| EN54-7 | Yes |
|---|---|
| CE Approved | Yes |
| Operating Voltage | 10~28 VDC |
| Start-up Current | ≤ 350uA |
| Start-up Time | ≤ 8s |
| Standby Current | ≤ 45uA |
| Alarm Current @ 10V | 12mA |
| Alarm Current @ 24V | 40mA |
| Alarm Current @ 28V | 48mA |
| Max Permitted Current | 100mA |
| Sampling Time | 5s |
| Reset Voltage | ≤ 2.1V |
| Rest Time | ≤ 3s |
| Alarm Response Threshold | A1R |
| Operating Temperature | -10°C to +50°C |
| Operating Humidity | 0% – 95% RH non-condensing |
| Storage Temperature | -25°C to +80°C |
| Storage Humidity | 0% – 98% RH non-condensing |
| Alarm Indicator | 2 LED's |

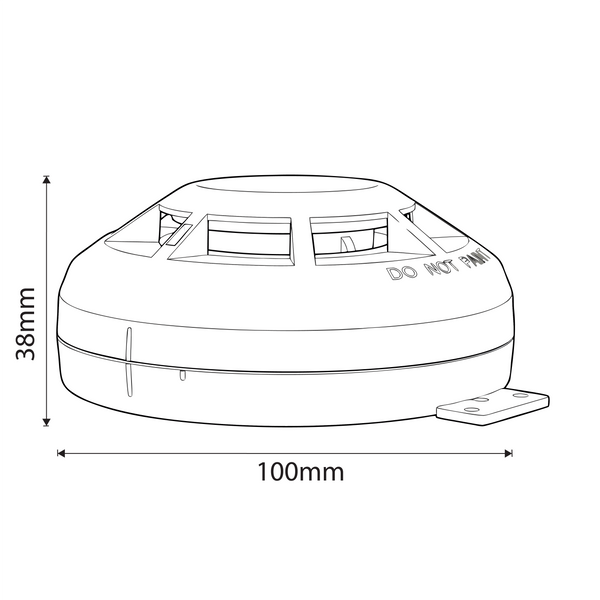

| Dimensions (mm) | ⌀100mm x 38mm |
| Ceiling Space | ≤ 15m |
| Device Type | Heat Detector |
