Category Cable | Cat5e | Eca | PVC | Grey | 100

SKU CAT5eUTP/GY/PVC/100 Category

CQR Professional Cat5e Cable

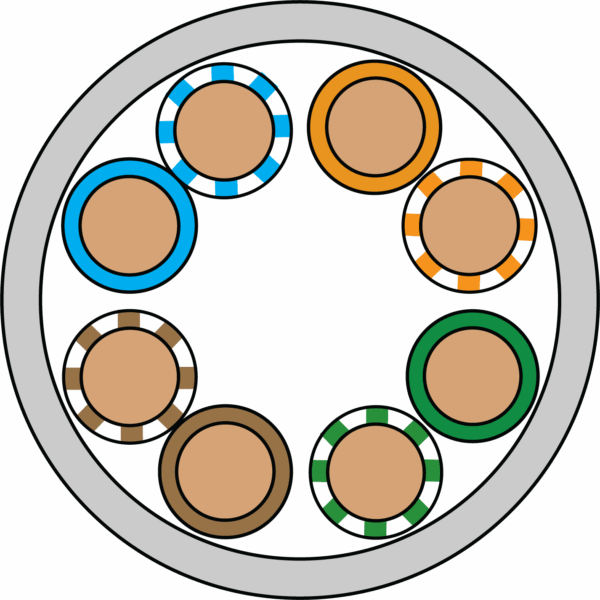

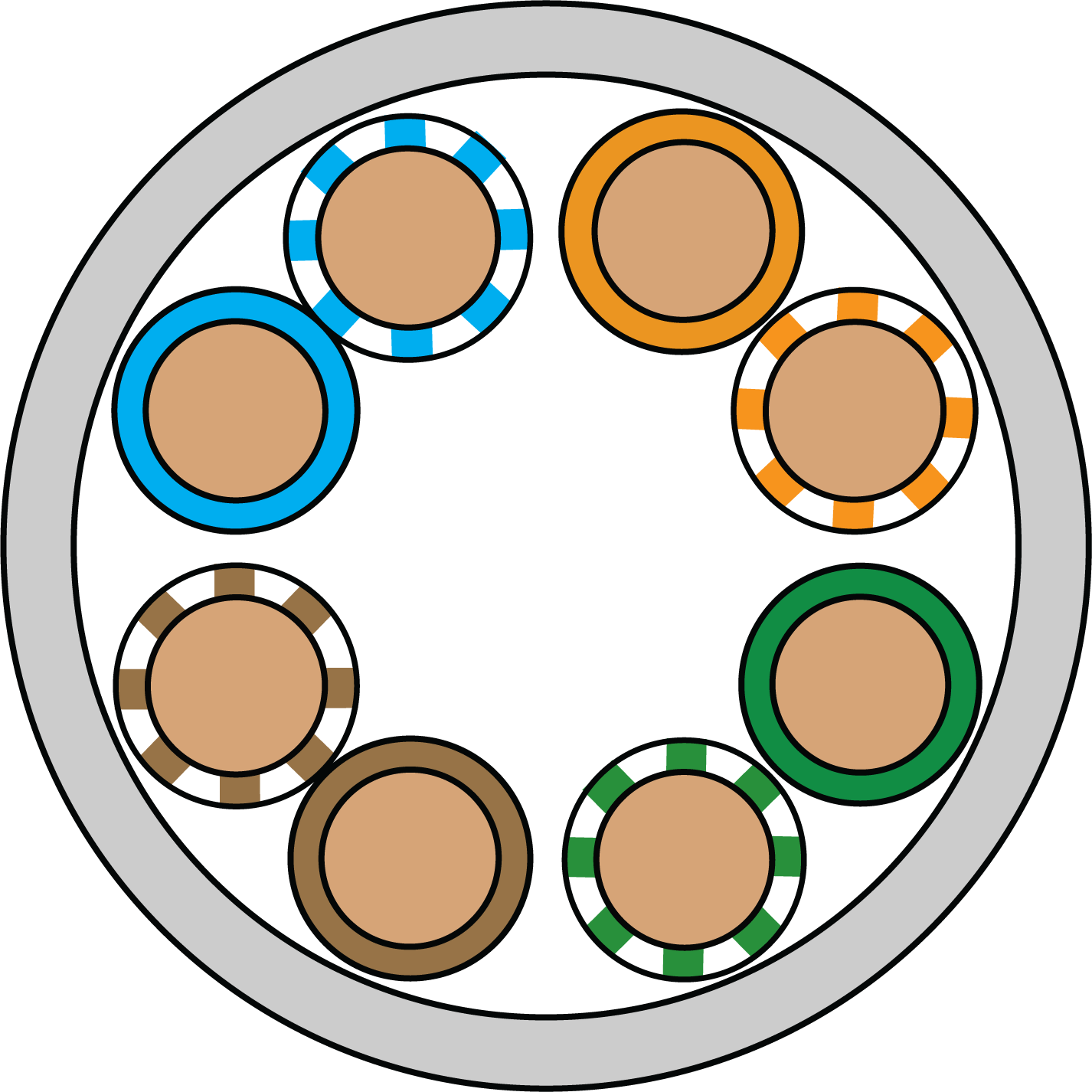

Unshielded Twisted 4 Pairs (UTP)
Solid Plain Annealed Copper
100 Mbps transfer speed / 100 MHz frequency at a maximum distance of 90 meters
Standards: ISO 11801 / EN50575:2014 +A1:2016

Description

Our range of category Cat5e cables are designed to set the industry benchmark, providing market-leading levels of low resistance, core strength and ease of installation. Available in PVC / Low Smoke Zero Halogen (LSZH) and PE variants, ensuring compliance with even the most sensitive of installation requirements.

Number of Cores8
Multi or SolidSolid
EURO CLASSEca
Length (Mtrs)100
SheathingPVC
Sheathing ColourGrey
ScreenedNo
Conductor TypeCopper
Conductor Size0.47
Number of Strands in Core1
Insulation MaterialHDPE
Insulation ColourBL-BL/WH-OR-OR/WH-GR-GR/WH-BR-BR/WH
Insulation Resist @20°C5000
Nylon Rip Cord ColourWhite
Nominal Diameter5
Operating Temp-10°C to +80°C
Max Voltage50V
Reel / BoxBox
Datasheet
Declaration of Performance UK
Declaration of Performance EU
CQR Cable Catalogue
