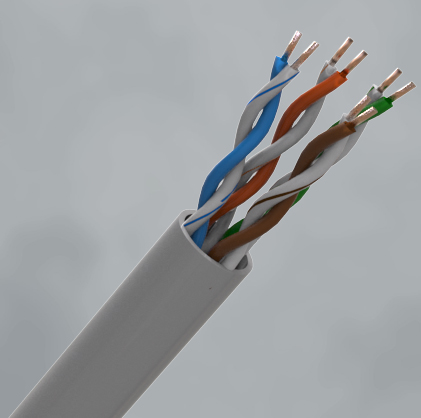

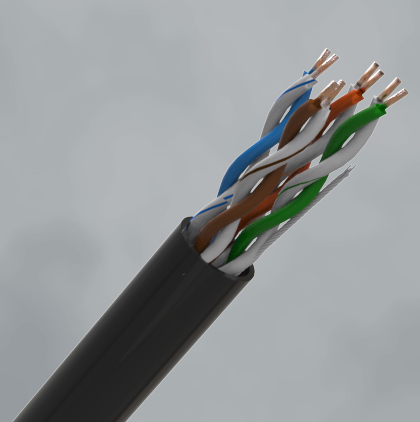

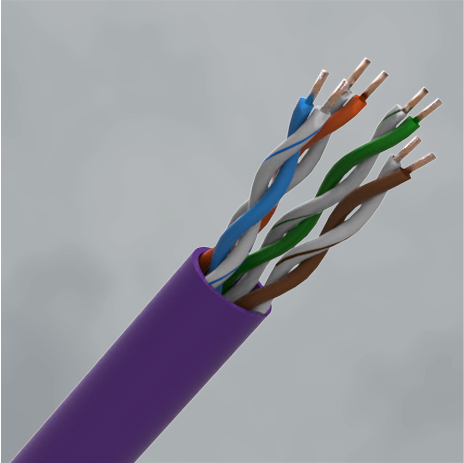

CQR Professional Cat5e Cable
Unshielded Twisted 4 Pairs (UTP)
Solid Plain Annealed Copper 100 Mbps transfer speed / 100 MHz frequency at a maximum distance of 90 meters
Standards: ISO 11801 / EN50575:2014 +A1:2016
Our range of category Cat5e cables are designed to set the industry benchmark, providing market-leading levels of low resistance, core strength and ease of installation. Available in PVC / Low Smoke Zero Halogen (LSZH) and PE variants, ensuring compliance with even the most sensitive of installation requirements.

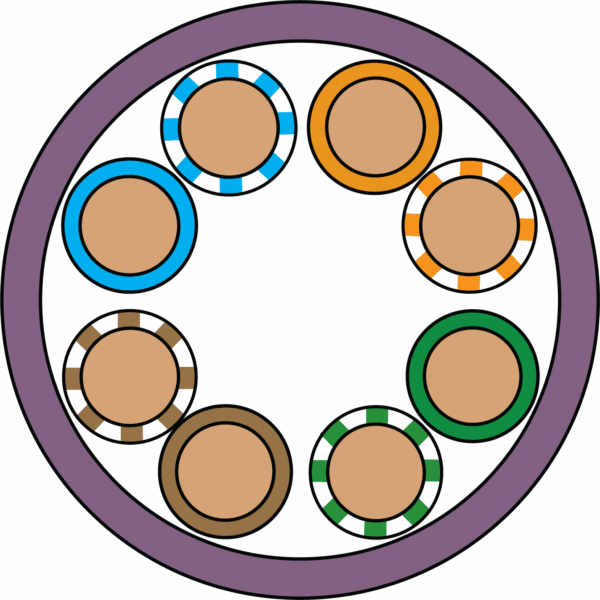

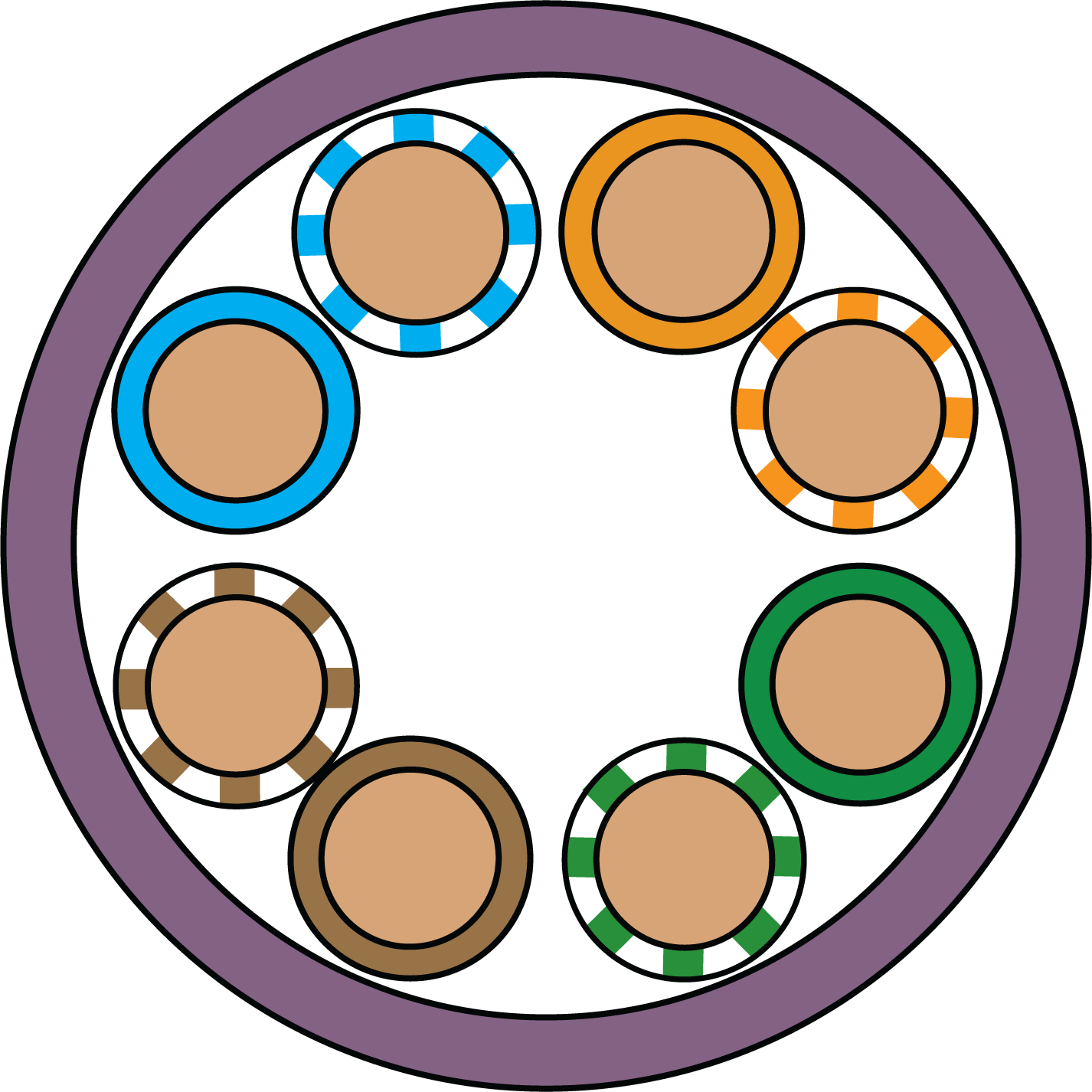

| Number of Cores | 8 |
|---|---|
| Multi or Solid | Solid |
| EURO CLASS | Eca |
| Length (Mtrs) | 305 |
| Sheathing | LSZH |
| Sheathing Colour | Purple |
| Screened | No |
| Conductor Type | Copper |
| Conductor Size | 0.47 |
| Number of Strands in Core | 1 |
| Insulation Material | HDPE |
| Insulation Colour | BL-BL/WH-OR-OR/WH-GR-GR/WH-BR-BR/WH |
| Insulation Resist @20°C | 5000 |
| Nylon Rip Cord Colour | White |
| Nominal Diameter | 5 |
| Operating Temp | -10°C to +80°C |
| Max Voltage | 50V |
| Reel / Box | Box |
