SC513 | Surface Contact | Grade 2 | White | Non-resistored

SKU SC513/WH/4C Category

Surface mounted contact.
Sealed for increased moisture resistance.
Pre-wired
EN50131-2-6 Grade 2
Environmental Class II

Description

This compact surface mounted magnetic contact can be used in security systems up to and including security grade 2 & environmental class II (for use indoors) as specified in EN50131-1 and is compliant to EN50131-2-6.
It operates as a normally closed circuit going open when the magnet housing is moved away from the contact housing. This contact can be used on window and doors to detect the unauthorised entry of an intruder, it is pre-wired and potted for added protection

Additional information

Colour

White

Material

ASA

Contact Material

Palladium

Commodity Code

85311030

Country Of Origin

UK

Height (mm)

30

Width (mm)

35

Depth (mm)

90

Barcode

5060399127882

Weight (kg)

0.0527

Type of

Pre-wired

EN50131-2-6 Grade

2

Tamper Protection

Internal

EN50130-5 class

Class II

IP Rating

3X

Temperature Range

-15°C – +40°C

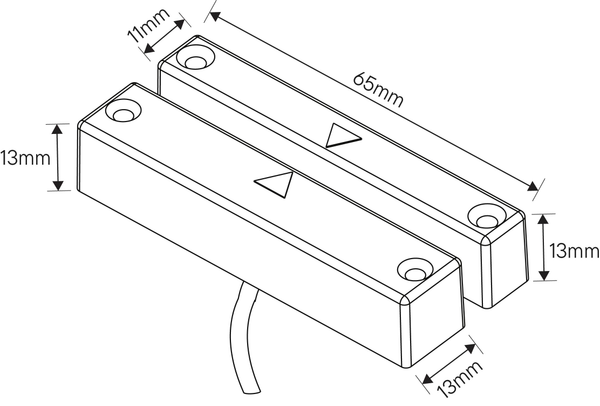

Contact Dimensions (mm)

65 x 13 x 13

Magnet Dimensions (mm)

65 x 13 x 13

Maximum switching voltage (Vdc)

12Vdc

Maximum switching current (mA)

1A

Connection Type

Wired

No. of Terminals

4 Wire

Contact Type

Normally Closed

Wire length (mm)

100

Mode Of Operation

DP

Operation Axes (X, Y, Z)

X, Y, Z

Pull-in gap (X, Y, Z)mm

5, 30, 30

Pull in Gap

30mm

Suitable for Double Door

Yes

Suitable for Double Pole Sys

Yes

No of Reed Switches

1

Resistor Value

Non-resistored

Datasheet
Declaration of Performance EU
