GP001 | Surface Contact | Grade 2 | Aluminium | Non-resistored

SKU GP001/G2 Category

High Quality Alloy Finish
Double pole configuration
57cm Armoured cable lengths
EN50131-2-6 Grade 3
Environmental Class II

Description

This heavy duty surface mounted magnetic contact can be used in most security systems up to grade 2 as specified in EN50131-1 and is compliant with EN50131-2-6 and environmental class II (for use indoors).
It operates as a normally closed circuit going open when the magnet housing is moved away from the contact housing. This contact can be used on doors and windows to detect the unauthorised entry of an intruder. A number of applications are shown over. The contact is sealed to prevent access to inside of the unit.

Additional information

Colour

Aluminium

Material

Aluminium

Contact Material

Rhodium

Commodity Code

85311030

Country Of Origin

UK

Height (mm)

90

Width (mm)

25

Depth (mm)

25

Barcode

5060399126724

Weight (kg)

0.16

Type of

Heavy Duty

EN50131-2-6 Grade

2

Tamper Protection

Internal

EN50130-5 class

Class III

IP Rating

3X

Temperature Range

-10°C – +40°C

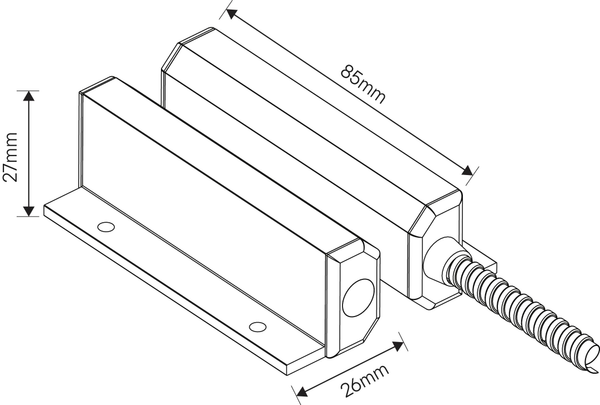

Contact Dimensions (mm)

85 x 27 x 26

Magnet Dimensions (mm)

85 x 27 x 26

Maximum switching voltage (Vdc)

12Vdc

Maximum switching current (mA)

500

Connection Type

Wired

No. of Terminals

4 Wire

Contact Type

Normally Closed

Wire length (mm)

470

Mode Of Operation

DP

Operation Axes (X, Y, Z)

Y, Z,

Pull-in gap (X, Y, Z)mm

30, 40

Pull in Gap

30mm

Suitable for Double Door

Yes

Suitable for Double Pole Sys

Yes

No of Reed Switches

1

Resistor Value

Non-resistored
